Distribution of relaxation times

Distribution of relaxation times

Derivation of DRT

The goal is to present the complete symbolic and numerical methods for caluclating the distribution of relaxation times (DRT). The results are based on the paper Electrical Properties of Solids. VIII. Dipole Moments in Polyvinyl Chloride- Diphenyl Systems by Fuoss and Kirkwood. The Pyhton implementation uses sympy for symbolic solution of the transformation from the transfer function into the the DRT equation.

The relation for DRT $G(\tau)$ is based on (42) from the above paper. In their derivation they used the following relation:

$\pi F(s) = H(s+j\pi/2) + H(s-j\pi/2),$

where $F(s)=\tau G(\tau)$ and $H(x)$ is $-\Im(Z(x))$. The negation sign comes from (17) since they define the transfer function as:

$Q(\omega) = J(x) - jH(x),$ where $x=\log\left(\frac{\omega_m}{\omega} \right)$. In order to change $x$ to $\omega$, $\omega=e^{-x}$ using (18). Taking all this into account the original (42) becomes:

$F(s) = -\frac{1}{\pi}\left[ H\left(e^{-s-j\frac{\pi}{2}}\right) + H\left(e^{-s+j\frac{\pi}{2}}\right) \right].$

When trasfering back to $G(\tau)$, one should use (28) and (29).

For known transfer function (impedance model) $Z(j\omega)$ the distribution of relaxation times can be obtained in closed form as:

$ G(u) = -\frac{1}{\pi}\left( \Im\left\{ Z\left( \exp\left(-u-i\frac{\pi}{2}\right) \right) \right\} + \Im\left\{ Z\left( \exp\left(-u+i\frac{\pi}{2}\right) \right) \right\} \right) $

This can be easily implemented using sympy package from Python.

import sympy as sp
import numpy as np
import matplotlib.pyplot as plt

[w, t]=sp.symbols('omega T',positive=True)
s_R = []
s_alpha = []
s_tau = []
s_Rs = sp.symbols('Rs', positive=True)
n_dim = 1

R = sp.symbols(f'R', positive=True)
alpha = sp.symbols(f'alpha', positive=True)
tau = sp.symbols(f'tau', positive=True)

s_Z = s_Rs + R/(1+(tau*sp.I*w)**alpha)

s_drt =-1/sp.pi*( sp.im(s_Z.subs(w,sp.exp(-t-sp.I*sp.pi/2)))+sp.im(s_Z.subs(w,sp.exp(-t+sp.I*sp.pi/2) )))
drt =-1/sp.pi*( sp.im(s_Z.subs(w,sp.exp(-t-sp.I*sp.pi/2)))+sp.im(s_Z.subs(w,sp.exp(-t+sp.I*sp.pi/2) )))

s_Z

$\displaystyle \frac{R}{\left(i \omega \tau\right)^{\alpha} + 1} + Rs$

drt.subs((-1)**alpha,sp.exp(-1*sp.I*sp.pi*alpha)).simplify()

$\displaystyle - \frac{R \tau^{\alpha} e^{T \alpha} \sin{\left(\pi \alpha \right)}}{\pi \left(\tau^{2 \alpha} + 2 \tau^{\alpha} e^{T \alpha} \cos{\left(\pi \alpha \right)} + e^{2 T \alpha}\right)}$

Pole importance through DRT

def get_drt_f(Rs, R, tau, alfa, n_dim):
    [w, t]=sp.symbols('omega T',positive=True)
    s_R = []
    s_alpha = []
    s_tau = []
    s_Rs = sp.symbols('Rs', positive=True)
    for poles in range(n_dim):
        s_R.append(sp.symbols(f'R_{poles}', positive=True))
        s_alpha.append(sp.symbols(f'alpha_{poles}', positive=True))
        s_tau.append(sp.symbols(f'tau_{poles}', positive=True))

    s_Z = s_Rs + sum([s_R[i]/(1+(s_tau[i]*sp.I*w)**s_alpha[i]) for i in range(n_dim)])


    s_drt =-1/sp.pi*( sp.im(s_Z.subs(w,sp.exp(-t-sp.I*sp.pi/2)))+sp.im(s_Z.subs(w,sp.exp(-t+sp.I*sp.pi/2) )))
    drt_f = s_drt.subs(s_Rs,Rs)#.subs(s_alpha[0],0.8).subs(s_R[0],1).subs(s_tau[0],2.8)

    # # drt_f = s_drt.subs(s_Rs,Rs_t).subs(s_R[0],.25e-2).subs(s_tau[0],50).subs(s_alpha[0],0.9)


    for i in range(n_dim):
        drt_f = drt_f.subs(s_R[i],R[i])
        drt_f = drt_f.subs(s_alpha[i],alfa[i])
        drt_f = drt_f.subs(s_tau[i],tau[i])
    return sp.lambdify(t,drt_f,"numpy")

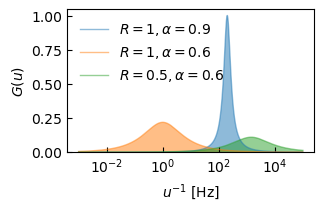

f_e = get_drt_f( 2e-3, [1.], [.005], [.9], 1)
f_e2 = get_drt_f( 2e-3, [1.], [1.], [.6], 1)
f_e3 = get_drt_f( 2e-3, [.5], [.0007], [.6], 1)

sp_tau = np.logspace(-5,3,1000)
sp_T = np.log(sp_tau)
inter = np.power(sp_tau, -1)
sp_tau_int = np.linspace(inter.min(), inter.max(), 1000)

fig = plt.figure(figsize=(6.25/2,4/2))
fig.set_constrained_layout(True)
plt.semilogx(np.power(sp_tau,-1),f_e(sp_T),label=r'$R=1,\alpha=0.9$',linewidth=1,alpha=.5)
plt.semilogx(np.power(sp_tau,-1),f_e2(sp_T),label=r'$R=1,\alpha=0.6$',linewidth=1,alpha=.5)
plt.semilogx(np.power(sp_tau,-1),f_e3(sp_T),label=r'$R=0.5,\alpha=0.6$',linewidth=1,alpha=.5)
plt.fill_between(np.power(sp_tau,-1),f_e(sp_T),linewidth=1,alpha=.5)
plt.fill_between(np.power(sp_tau,-1),f_e2(sp_T),linewidth=1,alpha=.5)
plt.fill_between(np.power(sp_tau,-1),f_e3(sp_T),linewidth=1,alpha=.5)


plt.xscale('log')
plt.ylim(0,1.05)
plt.minorticks_off()
plt.tick_params(axis='both', which='both', direction='in')
plt.xlabel(r'$u^{-1}$ [Hz]')
plt.ylabel(r'$G(u)$')
plt.legend(loc='upper left',frameon=False)

png
